Product Details:
|
|
| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | XYHY |
| Certification: | ISO9001:2000 |
| Model Number: | LJ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | In wooden box |
| Delivery Time: | Within 2 months |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10,000 Piece/Pieces per Month |
|
Detail Information |
|||
| Model Number: | LJ | Material: | Hot Dip Galvanized Steel |
|---|---|---|---|
| Type: | Flat Plate | Stability: | High |
| Antivibration: | High | Operation: | Convenient |
| Durability: | Long | Usage: | Overhead Transmission Line |
| High Light: | overhead line hardware,electric power fitting |
||
Product Description

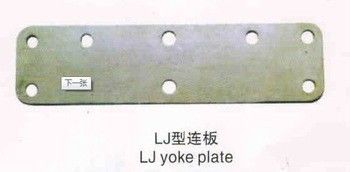

Hot Dip Galvanized Steel Yoke Plate Type LJ For Insulator Strings
Quick Details
| Place of Origin: | Guangdong, China (Mainland) |
| Model Number: | LJ |
| Type: | Flat plate |
| Material: | Hot dip galvanized steel |
| Usage: | Overhead Transmission Line |
| Stability: | High |
| Antivibration: | High |
| Durability: | Long |
| Operation: | Convenient |
Packaging & Delivery
Packaging Details: In wooden box
Delivery Time: Within 2 months
Description
Link fitting to connect insulator and fittings on ultra voltage transmission line.
LJ Type Yoke Plate is suitable for assembling the suspension insulator to string, and it is also used for connection of one or several strings insulator and then suspending on the pole arm of perch as well as connecting of suspension clamp and dead end clamp & connection between stay wire and perch.
Technical Parameters
| Catalog No. | Dimensions(mm) |
Rated Failure Load (kN) |
Weight(kg) | ||||
| b | h | d1 | d2 | L | |||
| LJ-1040 | 16 | 70 | 18 | 20 | 400 | 100 | 6.5 |
| LJ-1240 | 16 | 70 | 18 | 24 | 400 | 120 | 6.5 |
| LJ-1250 | 16 | 70 | 18 | 24 | 500 | 120 | 7.8 |
| LJ-1650 | 18 | 100 | 20 | 26 | 500 | 160 | 11.6 |
| LJ-1640 | 18 | 100 | 20 | 26 | 400 | 160 | 9.5 |
