Low Voltage ACSR Weasel Conductor ACAR OPGW Cross Section 10 - 1250mm2

China Low Voltage ACSR Weasel Conductor ACAR OPGW Cross Section 10 - 1250mm2 supplier
Low Voltage ACSR Weasel Conductor ACAR OPGW Cross Section 10 - 1250mm2 supplier Low Voltage ACSR Weasel Conductor ACAR OPGW Cross Section 10 - 1250mm2 supplier

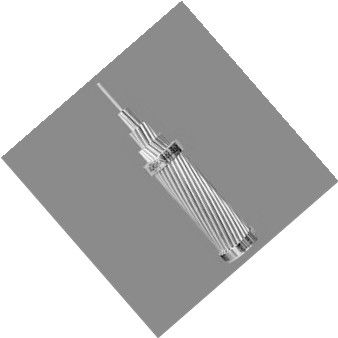

Large Image :  Low Voltage ACSR Weasel Conductor ACAR OPGW Cross Section 10 - 1250mm2

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: XYHY
Certification: ISO, CCC, TUV, CE
Model Number: ACSR

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: According to customer's request, usually 2-4 weeks.
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 600 Kilometer/Kilometers per Month conductor
Contact Now
Detailed Product Description
Model Number: ACSR Conductor Material: Aluminium Alloy
Insulation Material: Bare Application: Overhead
Type: Low Voltage Cross Section: 10~1250mm2
Certificate: ISO KEMA TUV UL IEC CCC Standard: IEC ASTM BS DIN

Low Voltage Overhead Conductor(ACSR, AAC, AAAC, ACSS/TW, ACCC, ACSR, ACAR, OPGW)Bare Conductor





Quick Details



Model Number: ACSR
Conductor Material: Aluminium
Insulation Material: Bare
Application: Overhead Transmission Line
Reference standard: IEC ASTM BS DIN
Certification: ISO KEMA TUV UL IEC CCC
Cross section: 10~1250mm2





Packaging & Delivery



Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: According to customer's request, usually 2-4 weeks.





Description



The bare conductor:AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electric power transmission and distribution lines with various grade voltage.




Service Performance

  1. High tensile strength
  2. Long life
  3. Light in weight
  4. Suitable for high as well as extra high overhead





Construction



ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded
in concentric layers. The wire or wires which form the core, are made of galvanized steel
and the external layer or layers, are of aluminium. Galvanized steel core consist normally
of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or
different.
By varying the relative proportions of aluminium and steel, the required characteristics for
any particular application can be reached. A higher U. T. S. Can be obtained, by increasing
steel content, and a higher current carrying capacity by increasing aluminium content.





Features

  • High strength to weight ratio
  • Better sag characteristics
  • Improved electrical properties
  • Excellent resistance to corrosion





Application



ACSR conductors are widely used for electrical power transmission over long distances,
since they are ideal for long overhead lines spans. They are also used as a messenger for
supporting overhead electrical cables.




Specification



(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)





Relative manufacturing standards



Our Bare conductor can meet or exceedthe item of cable international standards.
such as:
AAC : IEC 61089, ASTM B231, BS 215 part1, DIN 48201 etc.
AAAC : IEC 61089, ASTN B399, BS EN50183, BS 3242, DIN 48201 etc.
ACSR : IEC61089, ASTM B232, BS 215 part2, DIN 48204 etc.
ACAR : ASTM B524, IEC 61089 etc.
AACSR : ASTM B711, DIN 48206, IEC 61089 etc.

However, XYHY can also supply a range of alternative designs to meet customer-specified requirements.
