Overhead All Aluminium Conductor AAAC Model Number ASTM B-231-95 Standard

China Overhead All Aluminium Conductor AAAC Model Number ASTM B-231-95 Standard supplier
Overhead All Aluminium Conductor AAAC Model Number ASTM B-231-95 Standard supplier Overhead All Aluminium Conductor AAAC Model Number ASTM B-231-95 Standard supplier

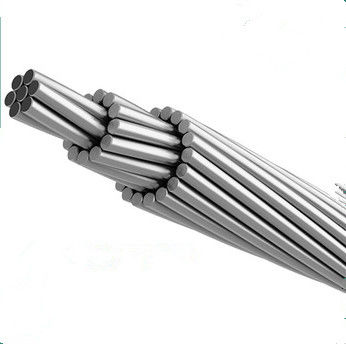

Large Image :  Overhead All Aluminium Conductor AAAC Model Number ASTM B-231-95 Standard

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: XYHY
Certification: ISO9001, ISO14001, OHSAS18001,CCC
Model Number: AAAC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: According to customer's request, usually 2-4 weeks.
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 600 Kilometer/Kilometers per Month conductor
Contact Now
Detailed Product Description
Model Number: AAAC Conductor Material: Aluminium Alloy
Insulation Material: Bare Application: Overhead
Type: High Voltage Standard: ASTM B-231-95,IEC 61089-1991
Certification: ISO9001, ISO14001, OHSAS18001,CCC

Aluminum Conductor All Aluminum Alloy Conductor AAAC Conductor 120mm2 150mm2 185mm2





Quick Details



Model Number: AAAC
Conductor Material: Aluminium Alloy Conductor
Insulation Material: Bare
Application: Overhead Transmission Line
Type: High Voltage
Reference standard: ASTM B-231-95,IEC 61089-1991





Packaging & Delivery



Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: According to customer's request, usually 2-4 weeks.





Description



Standard 6201, 6101 aluminum alloy conductors, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201,6101 conductors and of the standard ACSR of the same diameter are approximately the same. Conductors of the 6201,6101 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.





Construction



AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.
This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.





Properties



AAAC has a good corrosion resistance due to being composed out of aluminum alloy wires only, minimum conductivity of 52% IACS,high breaking strength per weight and normal creep values. AAAC has the highest strength per weight among all bare overhead conductors.





Features

  • High strength to weight ratio
  • Better sag characteristics
  • Improved electrical properties
  • Excellent resistance to corrosion



Application



AAAC is mainly used as bare overhead transmission cable and as primary and secondary
distribution cable. It is also suitable for laying across basins, rivers and valleys where
special geographical teatures exist.

The AAAC is used for overhead power transmission lines , especially the electric power augmentation of old transmission lines. We specialized in the research and application of AAAC for almost ten years. When replacing the aluminium conductor steel reinforced , the AAAC can save 5-8% of the construction cost. This AAAC covers aluminium alloy (hard solution, heat-treated, cold worked, and artifically aged) round wires for electrical purposes to be used as component wires of aluminium alloy conductor and aluminium alloy conductor steel reinforced.





Specification



(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6) rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7) aluminimum conductor aluminimum alloy reinforced(ACAR)




Elative manufacturing standards





Our Bare conductor can meet or exceedthe item of cable international standards.
such as:
AAC : IEC 61089, ASTM B231, BS 215 part1, DIN 48201 etc.
AAAC : IEC 61089, ASTN B399, BS EN50183, BS 3242, DIN 48201 etc.
ACSR : IEC61089, ASTM B232, BS 215 part2, DIN 48204 etc.
ACAR : ASTM B524, IEC 61089 etc.
AACSR : ASTM B711, DIN 48206, IEC 61089 etc.
Aslo we accept the OEM and the new design cable as customers.
