Galvanized Steel Power Pole Insulators , Glass Electrical Insulators 10kN - 550kN

China Galvanized Steel Power Pole Insulators , Glass Electrical Insulators 10kN - 550kN supplier
Galvanized Steel Power Pole Insulators , Glass Electrical Insulators 10kN - 550kN supplier Galvanized Steel Power Pole Insulators , Glass Electrical Insulators 10kN - 550kN supplier

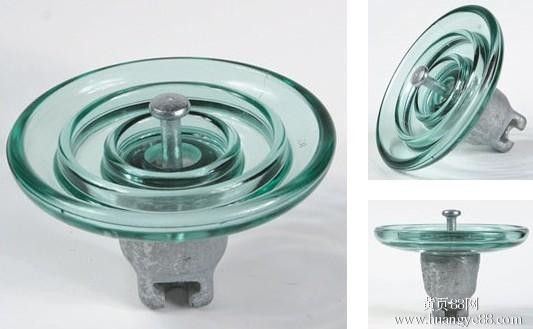

Large Image :  Galvanized Steel Power Pole Insulators , Glass Electrical Insulators 10kN - 550kN

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: XYHY
Certification: ISO9001 Certificaion
Model Number: N/A

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case and pallet, or according to customer's requirement
Delivery Time: 30days after order confirmed
Payment Terms: L/C, , D/A, D/P, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Material: Toughened Glass Type: Insulator
Application: High Voltage Rated Voltage: 110KV
Tensile Strength: 10kN-550kN Certification: ISO9001
Reference Standard: IEC Color:: Green

High Voltage Disc Glass Suspension Insulator, 10 kN - 550 kN





Quick Details



Place of Origin: Guangdong, China (Mainland)
Type: Insulator
Model number: U160B
Material: Porcelain/glass/silicone rubber
Application: High Voltage
Tensile Strength: 10kN-550kN
Reference standard: IEC





Packaging & Shipping


Packaging Details: Wooden case and pallet, or according to customer's requirement
Delivery Time: 30days after order confirmed





Description



Insulators are commonly used as a flexible coating on electric wire and cable. Since air is an insulator, in principle no other substance is needed to keep power where it should be. High-voltage power lines commonly use just air, since a solid (e.g., plastic) coating is impractical. However, wires which touch each other will produce cross connections, short circuits, and fire hazards. In coaxial cable the center conductor must be supported exactly in the middle of the hollow shield in order to prevent EM wave reflections. Finally, wires which expose voltages higher than 60V can cause human shock and electrocution hazards. Insulating coatings help to prevent all of these problems.





Feature



The Toughened glass insulators of cap and pin type is used high-voltage, ultrahigh voltage and extra high voltage alternating current and direct current transmission lines and hanging wires. It consists of iron cap, toughened glass and insulator pin. And owing to light weight, high intensity and large creepage distance , it can save metallic materials and reduce line cost.





Product Description



1. Rated voltage: 10kV~35kV
2. Tensile Strength:10kN~550kN
3. Material: Toughened glass
4. Certificate: ISO9001:2008.
5. The price is negotiation.





Specifications



Galvanized Steel Power Pole Insulators , Glass Electrical Insulators 10kN - 550kN
