Home ProductsBall EyeU Type Hot Dip Overhead Line Hardware , Transmission Line Fittings Dimension 33.3 41.0Ø
U Type Hot Dip Overhead Line Hardware , Transmission Line Fittings Dimension 33.3 41.0Ø
U Type Hot Dip Overhead Line Hardware , Transmission Line Fittings Dimension 33.3 41.0Ø

U Type Hot Dip Overhead Line Hardware , Transmission Line Fittings Dimension 33.3 41.0Ø

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: XYHY
Certification: ISO9001
Model Number: Q-7U Q-12U Q-16U Q-21U
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In wooden box
Delivery Time: Within 1 month after ordered
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10,000 Piece/Pieces per Month
Contact Now

Detail Information
Model Number: Q-7U Q-12U Q-16U Q-21U Material: Hot Dip Galvanized Steel
Color: Silver Application: Cable Clamp
Rated Failure Load: 70kN-210kN Weight: 0.6kg-1.5kg
Certificaion: ISO9001
Highlight:

transmission line accessories

,

transmission line hardware fittings

Product Description

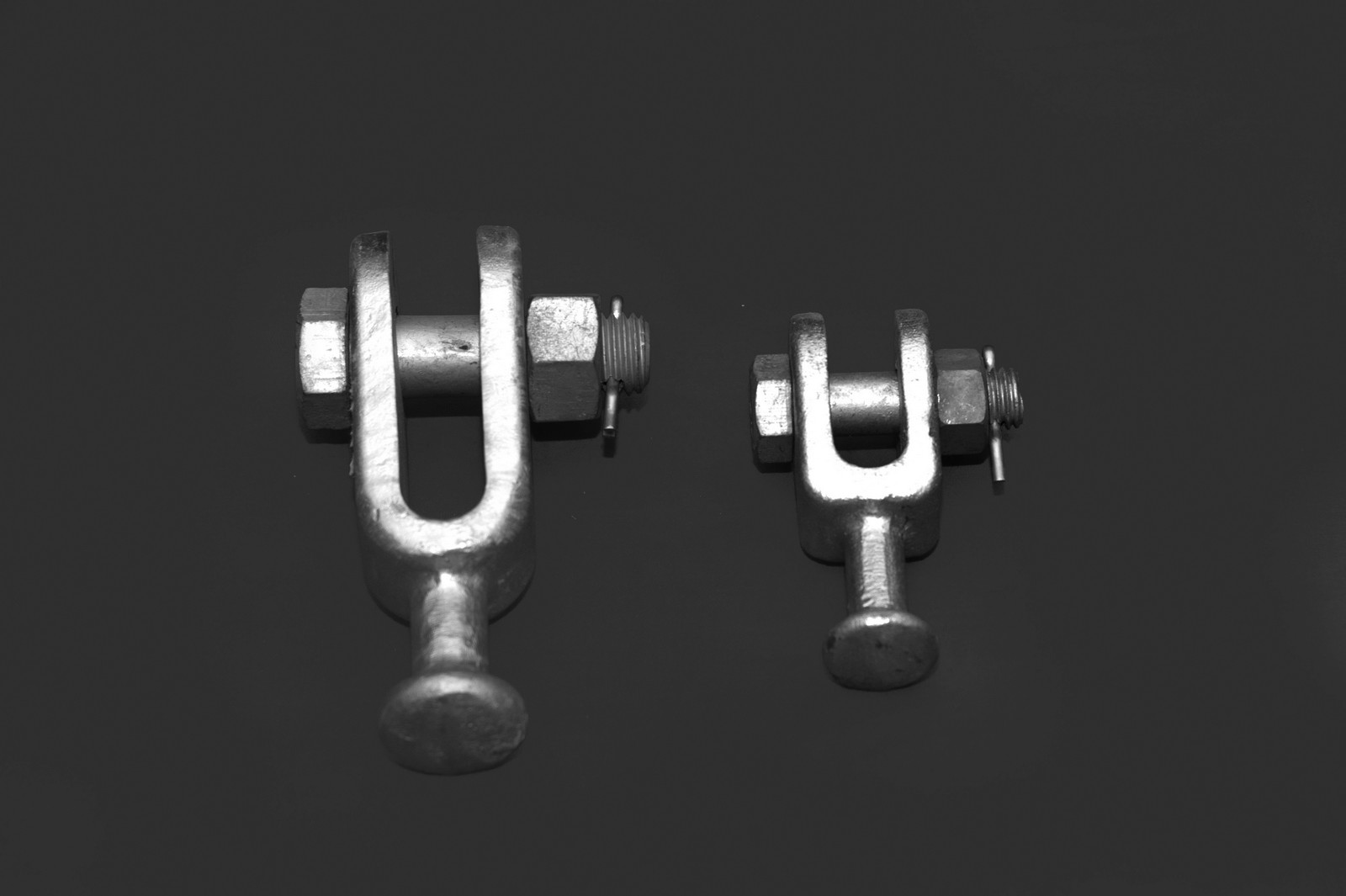

Hot Dip Galvanized Steel Pole Line Hardware U Tupe Ball Eyes





Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: XYHY
  • Model Number: Q-7U Q-12U Q-16U Q-21U
  • Material: Hot dip galvanized steel
  • Rated Failure Load: 70kN-210kN
  • Weight: 0.6kg-1.5kg
  • Certificaion: ISO9001





Packaging & Delivery



Packaging Details : In wooden box
Delivery Time: Within 1 month after ordered





Description

  1. Link fitting to connect insulator and fittings on ultra voltage transmission line.
  2. ISO9001 Certificaion
  3. Test prior to shipment
  4. Hot dip galvanized
  5. Type test report provided



Specification



Catalog No. Suitable Conductor Dimensions(mm)

Rated Failure Load

(kN)

Weight

(kg)
Ø h C M D
Q-7U XP-7 33.3 75 18.5 16 16 70 0.6
Q-12U XP-12 33.3 75 20 22 17 120 1.0
Q-16U XP-16 41.0 80 22 24 20 160 1.1
Q-21U XP-21 41.0 85 24 24 20 210 1.5



U Type Hot Dip Overhead Line Hardware , Transmission Line Fittings Dimension 33.3 41.0Ø 0
