Fiberglass Material High Voltage Glass Insulators For Insulation Protection

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: XYHY
Certification: ISO9001 Certificaion
Model Number: N/A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case and pallet, or according to customer's requirement
Delivery Time: 30days after order confirmed
Payment Terms: L/C, , D/A, D/P, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month

Detail Information

Material: Fiberglass Type: Insulator
Application: High Voltage Rated Voltage: 33KV
Tensile Strength: 90kN Certification: ISO9001
Reference Standard: IEC 60120 Usage: Insulation Protection
Highlight:

glass electrical insulators

,

toughened glass insulator

Product Description

IEC 90KN High Voltage Suspension Glass Insulator For Insulation Protection





Quick Details



Place of Origin: Guangdong, China (Mainland)
Type: Insulator
Model number: U90B
Material: Fiberglass
Application: High Voltage
Tensile Strength: 90kN
Weight: 3.9 kg
Certification: ISO9001
Usage: Insulation Protection





Packaging & Shipping


Packaging Details: Wooden case and pallet, or according to customer's requirement
Delivery Time: 30days after order confirmed





Description



Insulators are commonly used as a flexible coating on electric wire and cable. Since air is an insulator, in principle no other substance is needed to keep power where it should be. High-voltage power lines commonly use just air, since a solid (e.g., plastic) coating is impractical. However, wires which touch each other will produce cross connections, short circuits, and fire hazards. In coaxial cable the center conductor must be supported exactly in the middle of the hollow shield in order to prevent EM wave reflections. Finally, wires which expose voltages higher than 60V can cause human shock and electrocution hazards. Insulating coatings help to prevent all of these problems.





Feature

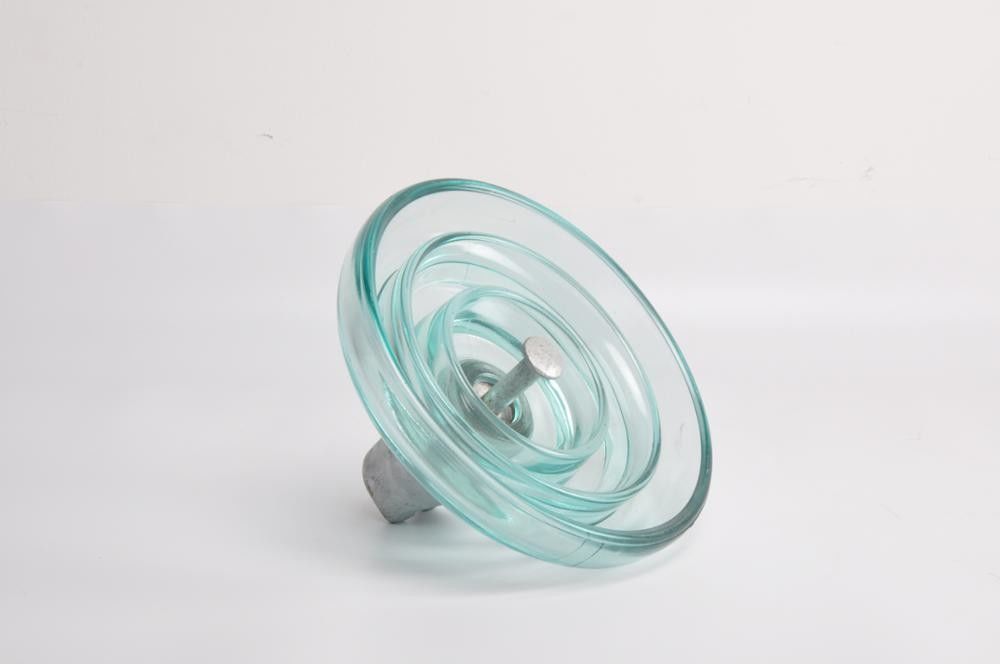

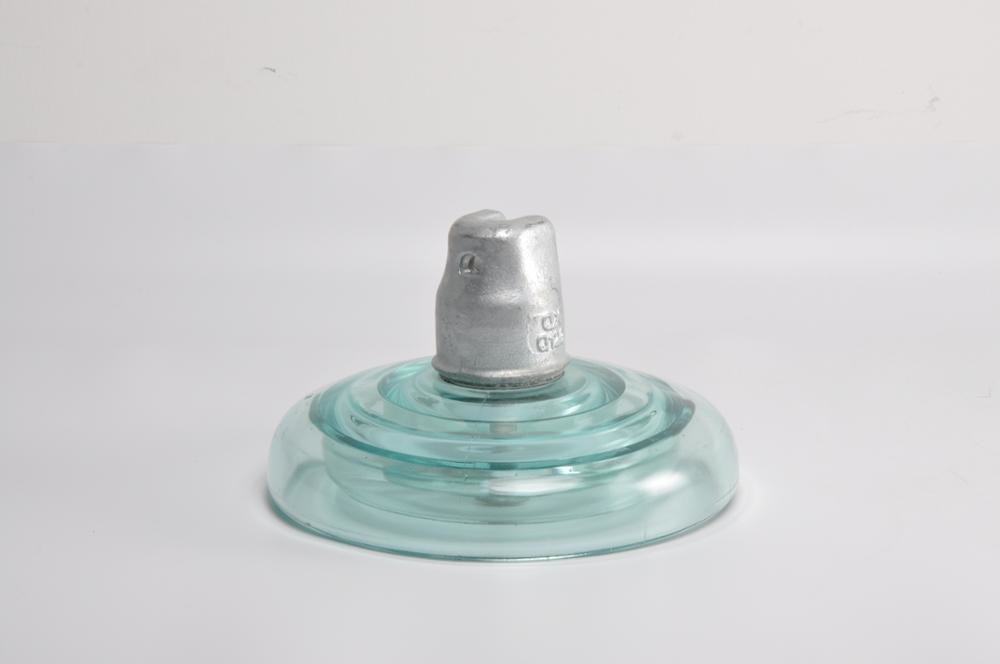

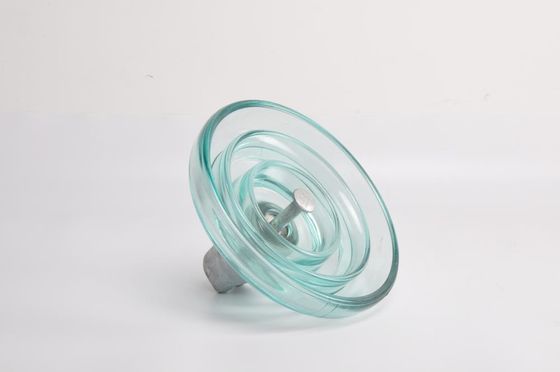

The Toughened glass insulators of cap and pin type is used high-voltage, ultrahigh voltage and extra high voltage alternating current and direct current transmission lines and hanging wires. It consists of iron cap, toughened glass and insulator pin. And owing to light weight, high intensity and large creepage distance , it can save metallic materials and reduce line cost.



Product Description



IEC 60120 90KN Suspension glass insulator not only have a delicate appearance and stable quality, but also support high voltage transmission lines. A suspension string can be made suitable for any voltage level.



1. Rated voltage: 33kV
2. Tensile Strength:90kN
3. Material: Fiberglass
4. Certificate: ISO9001:2008.
5. The price is negotiation.





Specifications



Fiberglass Material High Voltage Glass Insulators For Insulation Protection 0
