400KV High Tension Power Line Insulators , Glass Power Insulators 280mm Norminal Diameter

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: XYHY
Certification: ISO9001,IOS14001,TUV
Model Number: 160BMP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case and pallet, or according to customer's requirement
Delivery Time: 30days after order confirmed
Payment Terms: L/C, , D/A, D/P, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month

Detail Information

Material: Fiberglass Type: Insulator
Application: High Voltage Rated Voltage: 220KV
Tensile Strength: 160kN Feature: High Temperature Resistance
Certification: ISO9001:2008 Usage: Insulation Protection
Highlight:

power line insulators

,

toughened glass insulator

Product Description

Electrice Power 400kv High Tension 160kn Fog Type Glass Insulator





Quick Details



Place of Origin: Guangdong, China (Mainland)
Type: Insulator
Model number: 160BMP
Material: Fiberglass
Application: High Voltage
Tensile Strength: 160kN
Weight: 7.1kg
Norminal diameter: 280mm
Creepage distance: 550mm
Norminal spacing: 146mm
Certification: ISO9001:2008
Usage: Insulation Protection





Packaging & Shipping


Packaging Details: Wooden case and pallet, or according to customer's requirement
Delivery Time: 30days after order confirmed





Description



Insulators are commonly used as a flexible coating on electric wire and cable. Since air is an insulator, in principle no other substance is needed to keep power where it should be. High-voltage power lines commonly use just air, since a solid (e.g., plastic) coating is impractical. However, wires which touch each other will produce cross connections, short circuits, and fire hazards. In coaxial cable the center conductor must be supported exactly in the middle of the hollow shield in order to prevent EM wave reflections. Finally, wires which expose voltages higher than 60V can cause human shock and electrocution hazards. Insulating coatings help to prevent all of these problems.





Feature

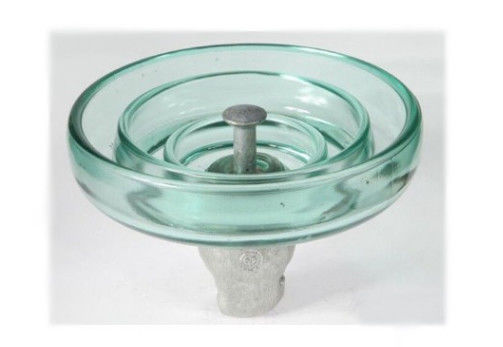

The Toughened glass insulators of cap and pin type is used high-voltage, ultrahigh voltage and extra high voltage alternating current and direct current transmission lines and hanging wires. It consists of iron cap, toughened glass and insulator pin. And owing to light weight, high intensity and large creepage distance , it can save metallic materials and reduce line cost.





Product Description



Glass Insulator has become popular in transmission and distribution system. Annealed tough glass is used for insulating purpose. Glass insulator has numbers of advantages over conventional porcelain insulator.



1. Rated voltage: 220KV
2. Tensile Strength:160kN
3. Feature: High Temperature Resistance
4. Certificate: ISO9001,2008
5. The price is negotiation.





Technical Specifications

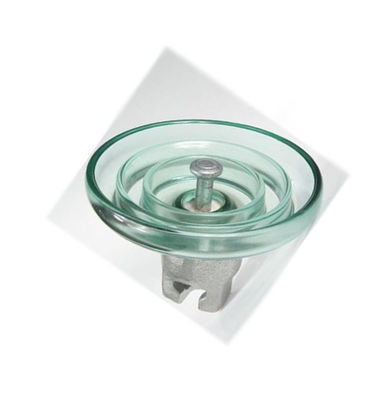

400KV High Tension Power Line Insulators , Glass Power Insulators 280mm Norminal Diameter 0

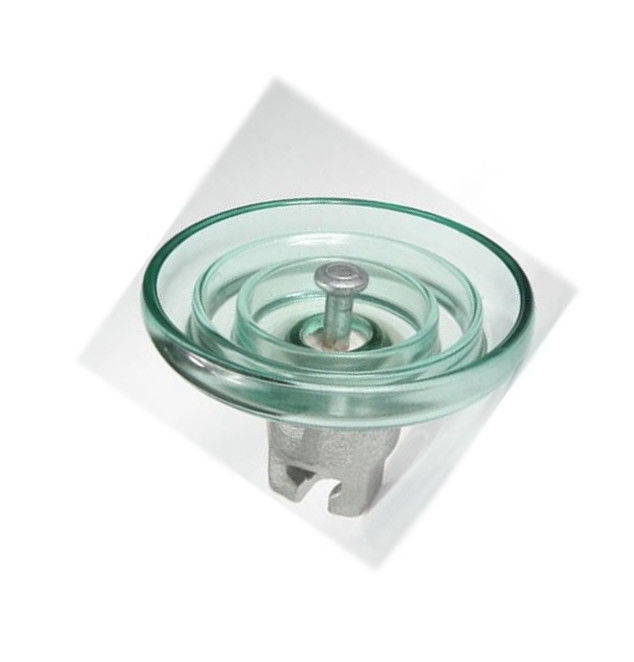

400KV High Tension Power Line Insulators , Glass Power Insulators 280mm Norminal Diameter 1
