FD-L Type Aluminum Alloy Vibration Damper For Overhead Transmission Line

Certification
Good quality Overhead Line Conductor for sales
Good quality Overhead Line Conductor for sales
I'm Online Chat Now

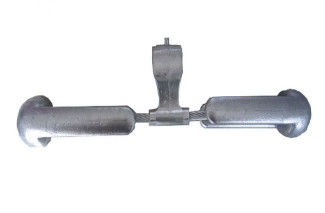

FD-L Type Aluminum Alloy Vibration Damper For Overhead Transmission Line

China FD-L Type Aluminum Alloy Vibration Damper For Overhead Transmission Line supplier

Large Image :  FD-L Type Aluminum Alloy Vibration Damper For Overhead Transmission Line

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: XYHY
Certification: ISO9001,SGS
Model Number: FD-L

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In wooden box
Delivery Time: 3 months
Supply Ability: 100000 Piece/Pieces per Month Port: Guangzhou
Detailed Product Description
Model Number: FD-L Material: Aluminium Alloy
Application: Overhead Transmission Line Operation: Easy
Antivibration: High Anti-corrosion: Good
Surface: Hot-dip Galvanized Certification: ISO9001,SGS



Aluminum Alloy Clamp FD-L Type Vibration Damper For Overhead Transmission Line





Quick Details



Place of Origin: Guangdong, China (Mainland)
Model Number: FD-L
Material: Aluminum alloy
Surface: Hot-dip galvanized
Application: Overhead transmission line
Operation: Convenient
Stability: High
Antivibration: Good
Anti-corrosion: Good
Certification: ISO9001,SGS





Packaging & Delivery



Packaging Details : In wooden box
Delivery Time: 3 months





Description



FD-L Type Vibration Damper makes use of rotation and swing of the two-end hammer heads for generating friction damping force from the mutual slippage among the galvanized iron wire strands to consume the swinged energy. It is adopted preformed rod structure in which the holding strength between the installation of vibration damper to preformed rods and the conductors evenly spread the distance from 30 to 60cm on the length area, effectively protecting the conductor by avoiding the stress concentration of the latter. It is of good slippage and antivibration performance as well as superior installation of preformed rods guarantee sustainable, stable and reliable holding strength between the performed rods and the conductors while its high efficient construction will be good for the convenient and reliable checkup.

Its inertia and spiral elasticity can make the damping component generate relative displacement on the conductor swing, consuming vibration energy by effecting viscous damping phenomenon. The more the conductor swings, the more vibration damper consumes energy. Its installation shall take priority on its antinode; as its resonant frequency matches with the vibration frequency of conductor, the energy vibration damper consumes will be up to its maximum value.





Feature



Protective fitting for decreasing Vibration amplitude and Grading shielding of Insulator string such as dampers spacers.Spacer damper clamps are aluminum alloy. Dampers are elastomer. The other parts are hot-dip galvanized steel.





Specification



Vibration damper clamp is aluminum alloy,hammpers are grey iron, the other parts are hot-dip galvanized steel
1. GB/T National Standard
2. Type test before shipping
3. certification: ISO9001





Technical Parameter



FD-L Type Aluminum Alloy Vibration Damper For Overhead Transmission Line

FD-L Type Aluminum Alloy Vibration Damper For Overhead Transmission Line
