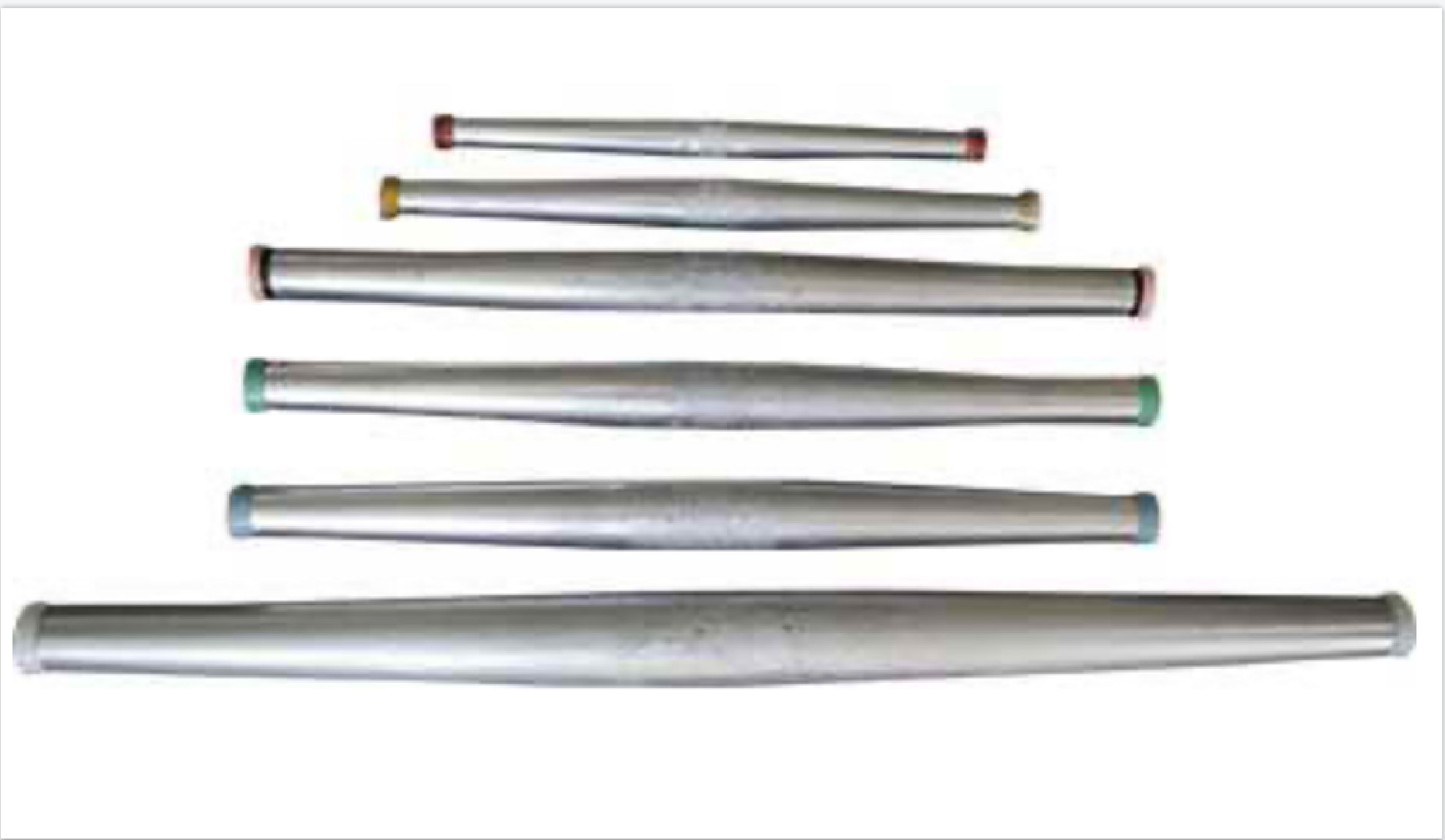

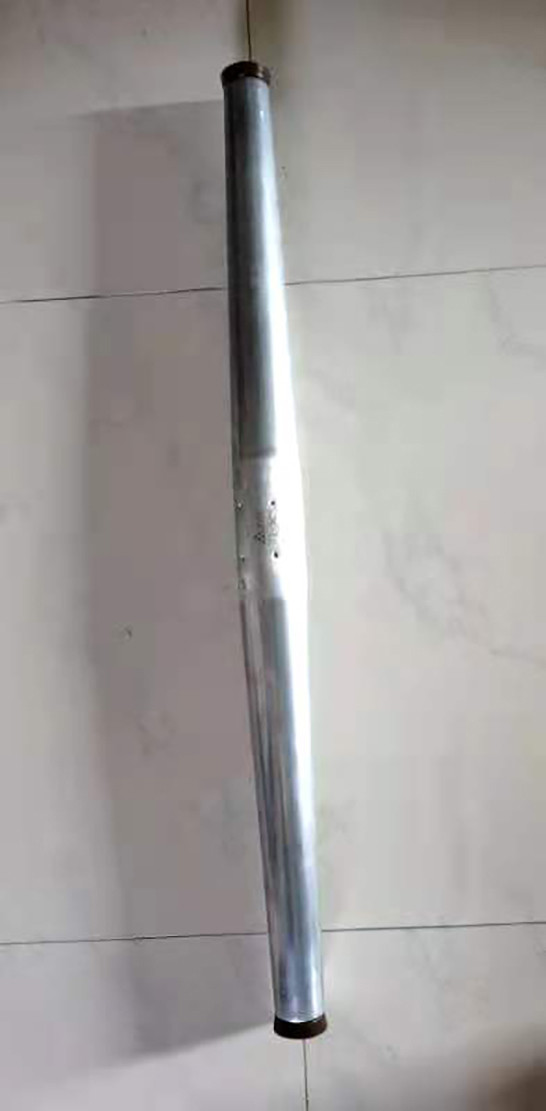

0.885/1.003 Inches Automatic Splice Connection
0.885/1.003 Inches Automatic Splice Connection 0.885/1.003 Inches Automatic Splice Connection

0.885/1.003 Inches Automatic Splice Connection

Product Details:
Place of Origin: Guangdong,China(Mainland)
Brand Name: XYPE
Model Number: I-92
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden cases
Delivery Time: 8 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 82000 piece/pieces per Month
Contact Now

Detail Information
Model Number: I-72 Type: Automatic Splice
Strand Color Guide: Brown Material: Aluminum Alloy
Dimension: 0.885/1.003 Inches Connection: Quick/easy
High Light:

0.740'' Aluminum Alloy Automatic Splice

,

AAAC Aluminum Alloy Automatic Splice

,

ACSR Aluminum Alloy splicing fitting

Product Description

Convenient insullation  Automatic Splice I-72 Model Number

Quick Details

  1. Place of Origin: Guangdong,China (Mainland)
  2. Brand Name: XYPE
  3. Model Number: I-92
  4. Material :Aluminum Alloy
  5.  Dimension:0.885/1.003 inches

packaging &Delivery


  • Packaging Details : wooden cases
  • Devery Time: 8. Days


Description:


  • Apply to the connection of overhead conductor ACSR/AAC/AAAC
  • Manufacture with state-of-art technology
  • Color cods strand guide to distinguish among specifications
  • New technology makes conduction much faster&easier
  • Quikly&Simplete the connection,time effective in construction&mainternace with higher conductor's transmission quality.

0.885/1.003 Inches Automatic Splice Connection 0


Model ACSR AAAC AAAC Total length A(mm) diameterΦB (mm) Strand Color Guide RANGE (mm)

HAS35

. (HAS42)

 JL/G1A-35/6 (#4&#2)

35m㎡

(#4&#2)

35m㎡

(#4&#2)

 350 (13.75) 25 (0.834) red/orange 0.85-0.853 (0.229-0.340)

HAS5070

(HAS1020)

 JL/G1A-50/8;JL/G1A-70/10;(1/0&2/0) 70m㎡ (1/0&2/0) 70m㎡ (1/0&2/0) 413 (16.25)

33

(1.15)

 gray/yellow 9.05-12.07 (0.365-0.475).

HAS7095

(HAS3040)

 JJL/G1A-70/40;JL/G1A-95/15;JL/G1A-95/20;JL/G1A-120/7(3/0&4/0) 90/120m㎡ (3/0&4/0) 90/120m㎡ (3/0&4/0) 559 (22.00)

44

(1.74)

 pink/black 12.07-14.88. (0.502-0.858)
HAS120150 (HAS266366) JL/G1A-120/20;JL-G1A-150/8;JL/G1A-150/25;JL/G1A-150/35. (266.8-18/1,366.4-18/1)

150/185m㎡ (336..4,226.

8,336.4&397.5)

150/185m㎡ (336..4,226

.8,336.4&397.5)

 559 (22.00)

44

(1.74)

 green 14.73-18.39. (0.580-0.724)
HAS185210 (HAS397477) JL/G1A-185/25;JL/G1A-185/30;JL/G1A-185/45. (397.5-18/1,477.0-18/1) 240m㎡ (477.0&556.5) 240m㎡ (477.0&556.5) 688 (27.00)

50.8

(2.00)

 blue 18.39-20.70. (0.740-0.815)
HAS240 (HAS477) JL/G1A-240/30；JL/G1A-240/40(#477.0-26/7) 300m㎡ (#636.0) 300m㎡ (#636.0) 820  (32.28)

57.1

(2.24)

 purple 20.40-22.40. (0.810-0.881)
HAS300 (HAS636) JL/G1A-300/40；JL/G1A-300/50；JL/G1A-300/50(#636.0-24/7)(#636.0-26/7) Elgin-330.4m㎡ Flint-375.3m㎡ Elgin-330.4m㎡ Flint-375.3m㎡ 879  (34.6)

63

(2.48)

 white 22.50-25.50. (0.885-1.003)
