Metal 6058 Automatic Splice Quick Vise Fencing

Product Details:
Place of Origin: Guangdong,China(Mainland)
Brand Name: XYPE
Model Number: 6056/6059/6058
Payment & Shipping Terms:
Minimum Order Quantity: 200000 Piece
Price: Negotiable
Packaging Details: wirevise standard package :100pcs/CTN,300pcs/CTN、200pcs/CTN
Delivery Time: 15 days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 200000 Piece/Pieces per Month wirevise standard package

Detail Information

Place Of Origin: China Brand Name: QuickVise Fencing
Model Number: 6056/6059/6058 Frame Material: Metal
Metal Type: Aluminum Feature: Easily Assembled
Type: XYPE Brand: Wirevise
High Light:

6058 Automatic Splice

,

Metal Automatic Splice

,

6056 Quick Vise Fencing

Product Description

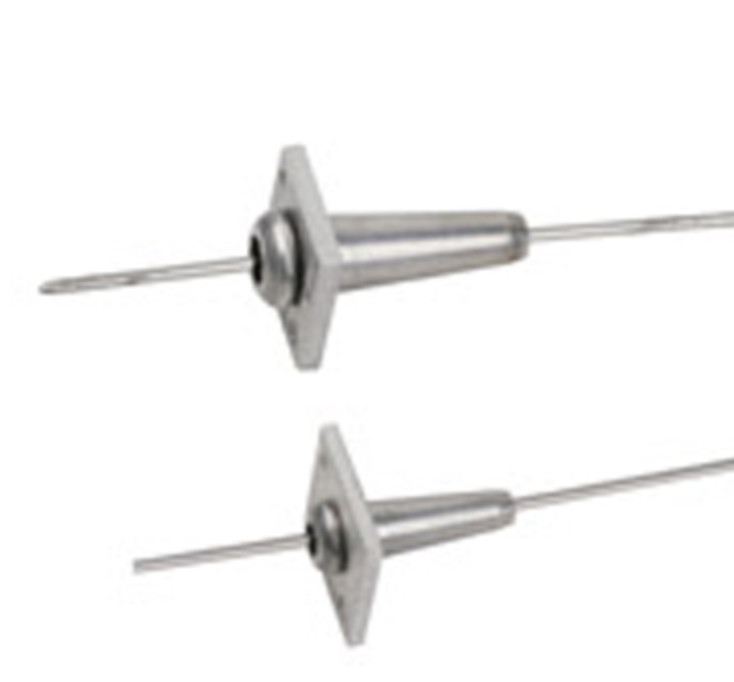

WIRE VISE

QUICKVISE /QUICKLINK





    The WIRE VISE and FAST SPLICE can fasten H-T wires without a tool. Merely insert the wires into the holes. The wires are gripped by spring-loaded clamps which tighten more securely as the wires are pulled harder, holding the wires at over 80% of the breaking strength of the wire itself.
The FASTSPLICE is double sided for joining two ends of wire on in-line splices whereas the FASTVISE is half of a FASTSPLICE and is used for terminations at an end post. Each wire on a fence requires one FASTVISE.

     To use the FASTVISE, drill a 3/8 inch hole through the end post and pull the wire through the hole. Then put the FASTVISE on the wire and tap it lightly into the hole. If final tensioning is to be done with the FASTVISE, it is recommended to pull the wire to the end post with a chain grab, then push the slack through the hole and FASTVISE. A special tightening tool (TVT) is also available for use with the FASTVISE. It grabs the wire which has been threaded into the FASTVISE and a simple prying action pulls the wire through the FASTVISE to the desired tension.
A TWR wire release tool can be used to remove most 12.5 gauge FASTSPLICE from the fence wire. This allows the FASTSPLICE to be reused if care is taken during both initial installation and later removal.








QUICKVISE /QUICKLINK Packing specification



Serial number name Packing quantity (pcs/carton) Packing specification (MM) Product unit weight (KG/PCS) Gross weight per carton (KG/carton) Description
1 QUICKVISE6058 100 310*150*155 0.0300 3.37 include6056/6058
2 QUICKVISE6059 300 310*150*155 0.0160 5.17 include6056/6059
3 QUICKVISE6058 TRELLIS 200 310*150*155 0.0195 4.27 include6056/6058
