Product Details:
|
|
| Place of Origin: | Guangdong,China(Mainland) |
|---|---|
| Brand Name: | XYPE |
| Certification: | ISO9001 |
| Model Number: | 3/16,1/4,5/16,3/8,7/16 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50000 Piece |
| Price: | Negotiable |
| Packaging Details: | 100pcs/ctn,300pcs/ctn,200pcs/ctn. |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Place Origin: | China | Brand Name: | Wirelink |
|---|---|---|---|
| Type: | XYPE | Application: | Power |
| Gender: | Female | Product Name: | Quickvise/Quicklink |
| Certificate: | ISO9001 | Material: | Aluminum |
| High Light: | Female Aluminum Automatic Splice,ISO9001 Automatic Splice |
||
Product Description

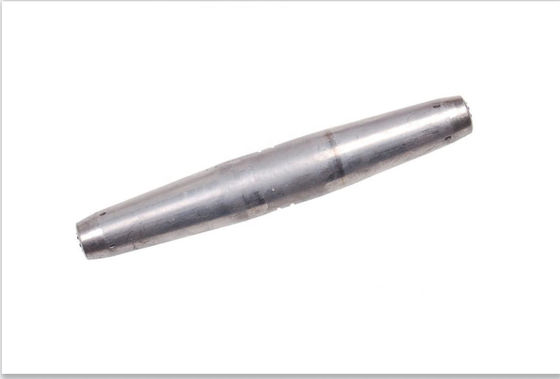

QUICKVISE/QUICKLINK
|
XQL can fasten H-T wires without a tool. Merely insert the wires into the holes. The wires are gripped by spring-loaded clamps which tighten more securely as the wires are pulled harder, holding the wires at over 80% of the breaking strength of the wire itself. |
Features: • Rated to hold a minimum of 90% of RBS strand used Application: • For splicing applications with overhead or down guy wire • "Universal Grade" are recommended for use with Alumoweld, Aluminized, EHS and Galvanized Steel • "All Grades" are recommended for use on Common Grade, Siemens-Martin, High Strength Utility Grade, Galvanized and Aluminized steel strand |
Packing specification
| NO. | appellation | Packing quantity (pcs/carton) | Packing specification(MM) | Product single weight(KG/PCS) | Gross weight per box(KG/ctn.) | Description |
| 1 | QUICKVISE6058 | 100 | 310*150*155 | 0.0300 | 3.37 | include 6056/6058 |
| 2 | QUICKVISE6059 | 300 | 310*150*155 | 0.0160 | 5.17 | include 6056/6059 |
| 3 | QUICKVISE6058 TRELLIS | 200 | 310*150*155 | 0.0195 | 4.27 | include 6056/6058 |
